Brand | : Furuno |
SKU Produk | : I03K034SK0157JP1149P13033 |
Warna Tersedia | : Hitam |
Rp. 34.900.000,- / Unit

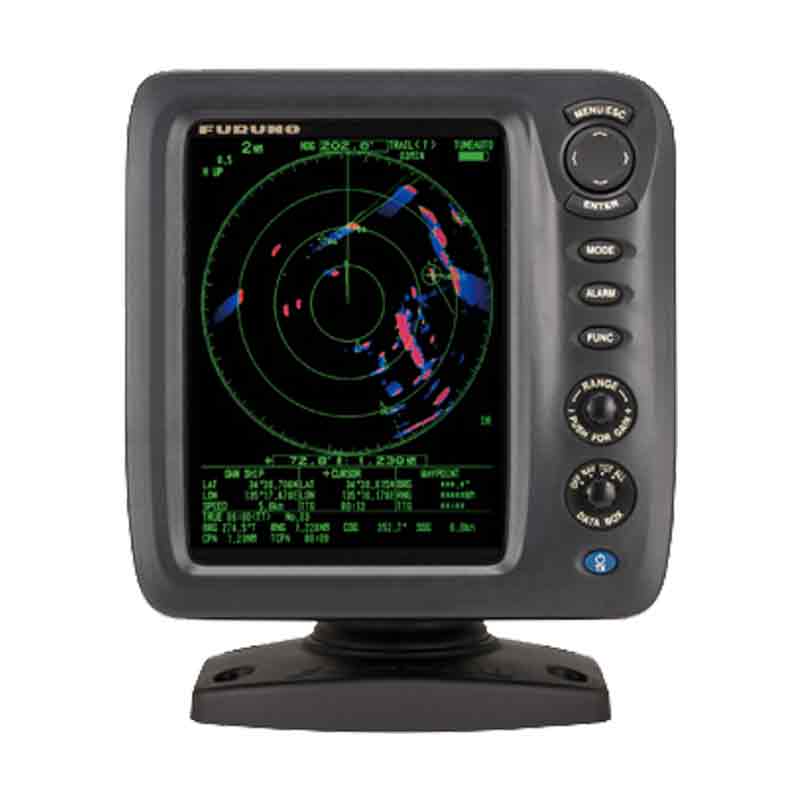

MODEL1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats. The Radar has easy-to-use, intuitive controls, while maintaining the high performance you expect from FURUNO products. Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastline and targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The waterproof display makes it ideal for exposed installations, such as fly bridges.
MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.
Antenna | |
Type | Ø488 mm (19º) radome |
Beamwidth | Horizontal 5.2º, Vertical 25º |
Rotation Speed | 24rpm |
RF Transceiver | |
Frequency | 9410 30MHz (x-band) |
Peak Output Power | 4kW |
Display | |
Display Type | 8.4 |
Effective Display Area | 1282.2 (W) x 170.9 (H) mm |
Pixel Number | 480 x 640 (VGA) |
Presentation Mode | Head-up, Course-up*, North-up*, True view*, True motion** |
Language | English, French,Spanish, German, Italian, Portuguese, Danish, Norwegian, Russian, Chinese, Thai, Vietnamese, Indonesian, Burmese, Korea, Japanese |
Environment | |
Temperature | Antenna unit: -25ºC to +55º and Display Unit: -15ºC to +55ºC |
Waterproofing | Antenna unit: IPX6 and Display unit: IP56 |
Power Supply | 12-24 VDC: 3.2-1.6 A |
